Electrolytic copper represents the pinnacle of copper purification, achieving exceptional purity levels that make it indispensable across various high-technology industries. This refined metal, produced through advanced electrochemical processes, serves as the foundation for everything from global electrical infrastructure to cutting-edge electronic devices.
The journey to premium electrolytic copper begins with blister copper, which typically contains 97-99% copper after initial smelting. This material is cast into anodes measuring approximately 1m × 1m × 4cm and weighing 300-400 kg each. These anodes are suspended in electrolytic cells containing acidic copper sulfate solution (CuSO₄ + H₂SO₄) alongside precisely manufactured stainless steel or titanium starter cathodes.
Under controlled electrical conditions (200-250 A/m² current density), a remarkable transformation occurs:
•Copper ions dissolve from the anode: Cu → Cu²⁺ + 2e⁻
•Pure copper deposits on the cathode: Cu²⁺ + 2e⁻ → Cu
•Impurities either remain in solution or form valuable anode slimes

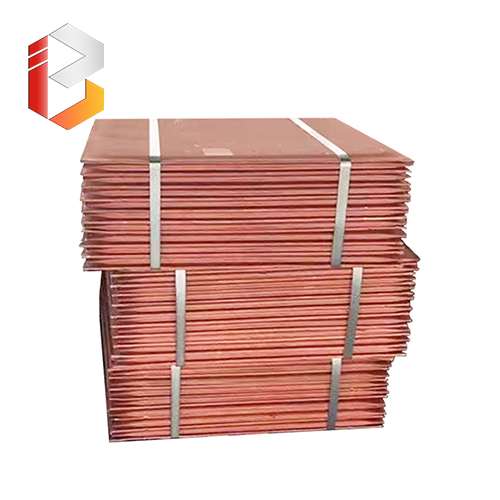

The process typically operates at 55-65°C with a cell voltage of 0.25-0.30 V, requiring approximately 200-300 kWh per tonne of copper produced. Over 7-14 days, this electrorefining process builds up cathode sheets weighing 60-100 kg with purity exceeding 99.99%.
The exceptional purity of electrolytic copper manifests in superior material properties:
Electrical Performance
•Conductivity: 101% IACS (International Annealed Copper Standard)
Resistivity: 1.7241 μΩ·cm at 20°C
Temperature coefficient: 0.00393 per °C
Mechanical Characteristics
•Tensile strength: 220-250 MPa (as deposited)
Elongation: 20-30%
Vickers hardness: 45-55 HV
Recrystallization temperature: 180-220°C
Surface Quality
Smooth, dense deposition morphology
Minimal surface oxidation
Average roughness (Ra): 0.5-2.0 μm
These properties make electrolytic copper particularly valuable for applications where even minor impurities would significantly impact performance.
Electrical Engineering
The electrical industry consumes approximately 60% of global electrolytic copper production. High-voltage power cables utilize oxygen-free electrolytic copper (Cu-OF) with conductivity ratings of 101-102% IACS. Transformer windings require precisely manufactured rectangular profiles with dimensional tolerances of ±0.05 mm. Motor and generator manufacturers specify electrolytic copper for its consistent performance and excellent formability.
Electronics and Telecommunications
The electronics industry demands the highest purity grades (99.999%+) for critical applications:
•Semiconductor interconnects: 0.13-0.25 μm wide traces
IC bonding wire: 15-50 μm diameter
RF waveguides: Precision-machined components
Vacuum electronic devices: OFHC (Oxygen-Free High Conductivity) copper
Renewable Energy Systems
Solar energy systems utilize electrolytic copper in:
•Photovoltaic cell busbars: 100-200 μm wide
Inverter components: High-frequency transformers
Energy storage systems: Battery interconnects
Wind turbine generators employ massive quantities of electrolytic copper—approximately 3-5 tonnes per MW of capacity—in stator windings and power transmission systems.
Advanced Manufacturing
Additive manufacturing has created new demand for specialized electrolytic copper powders with specific characteristics:
Particle size distribution: 15-45 μm for laser sintering
Apparent density: 2.2-2.8 g/cm³
Flow rate: 25-35 s/50g
Electrolytic copper production follows rigorous international standards:
•ASTM B115: Electrolytic Cathode Copper
EN 1978: Copper and copper alloys - Cathode copper
IEC 60028: International standard of copper resistivity
JIS H 2121: Electrolytic copper cathodes
Grade designations include:
•Cu-CATH-1: 99.9935% Cu minimum
Cu-CATH-2: 99.95% Cu minimum
Cu-CATH-3: 99.90% Cu minimum
Modern copper refineries have implemented numerous technological advances:
Automation and Control
•Machine vision systems for cathode inspection
Automated electrode handling reducing manual intervention
Real-time electrolyte monitoring and adjustment
Advanced current density control systems
Energy Efficiency Improvements
•Permanent cathode technology reducing energy consumption by 15-20%
Electrolyte circulation optimization
High-efficiency rectifier systems (98%+ efficiency)
Waste heat recovery from cooling systems
Environmental Management
•Closed-loop water systems minimizing discharge
Advanced acid mist control systems
Comprehensive capture and treatment of anode slimes
SO₂ emission reduction through improved ventilation
The global electrolytic copper market represents a vital component of the world economy:
•Annual production: ~25 million tonnes
•Market value: ~$200 billion annually
•Primary producing regions: Chile, China, Japan, United States
•Major consuming regions: China, United States, Germany, Japan
Price determinants include:
•LME (London Metal Exchange) copper prices
•Treatment and refining charges (TC/RCs)
•Transportation costs and logistics
•Currency exchange rates
•Supply chain dynamics
The electrolytic copper industry faces several important developments:
Purity Requirements Increasing
•Semiconductor industry moving toward 99.9999% purity
•Nanotechnology applications requiring ultra-fine copper structures
•Superconductivity research utilizing high-purity substrates
Sustainability Initiatives
•Carbon footprint reduction through renewable energy integration
•Water recycling rates exceeding 95% in modern facilities
•Circular economy principles driving recycling efficiency
•Digitalization improving resource optimization
Advanced Applications Emerging
•Quantum computing components
•Fusion reactor internal components
•Space exploration systems
•Medical device applications
Electrolytic copper remains fundamental to technological progress, with its unique combination of properties ensuring its continued importance across the entire spectrum of modern industry. As technology advances, the requirements for copper purity and performance will only become more stringent, driving further innovation in production methods and applications.
